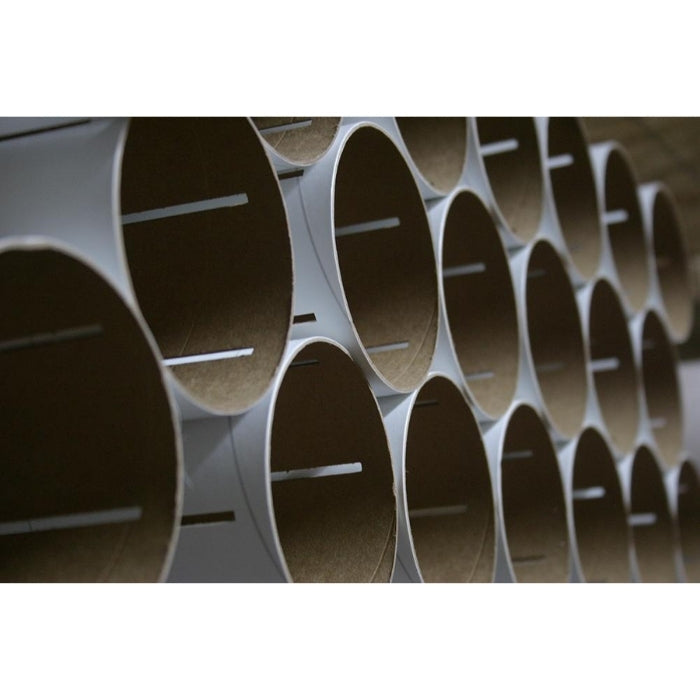

Loc Slotted Cardboard Airframes

Airframes made of cardboard with slots.

3 slot 1" (24mm) Airframe tube 9": This airframe tube from the LOC-I series is 9 inches long and has a diameter of 1 inch (24mm), featuring three slots each measuring 1.5 inches in length.

4 slot 1" (24mm) Airframe Tube 9": The LOC-I series airframe tube is 1" in diameter and measures 9 inches in length, with each slot being 1.5 inches long.

4 slot 1.6" (38mm) Airframe Tube 17": This tube, also called the "Park Flyer" Body Tube, measures 1.6"/38mm in diameter and is 17" long. It features four slots that are 1/8" wide x 3" long and positioned 1/2" from the aft end.

3 Slot 1.6" (38mm) Airframe Tube 17": The component referred to as the "Park Flyer" Body Tube features a diameter of 1.6"/38mm and a length of 17". It includes three slots that are 1/8" wide and 3" long, positioned at a distance of 1/2" from the aft end.

4 Slot 2.14" (54mm) Main Body Tube 34": Our Air Frame tubing measuring 2.14 inches comes with pre-cut slots for four fins. It is available in lengths of 34 inches, with each slot being 1/8 inch wide and 5/8 inch long.

3 Slot 2.14" (54mm) Airframe Tube 34": Our air frame measuring 2.14 inches comes pre-slotted for a three-fin configuration and is available in lengths of 34 inches. The slots are 1/8 inch wide and 4 5/8 inches long.

3 Slot 2.56" (63mm) Airframe Tube 30": White Tube with a diameter of 2.56 inches and an outer diameter of 2.63 inches, spanning a length of 30 inches. It shares the same inner diameter as the "BT-80" tube but has thicker walls, leading to a slightly larger outer diameter. The tube is highly durable yet lightweight, and comes pre-slotted for a three-fin configuration with slots that are 1/8 inch wide and 4 5/8 inches long.

4 Slot 3" (75mm) Airframe Tube 34": White Tubing with dimensions of 3.0" ID x 3.1" OD x a length of 34 inches, designed to fit PNC-3.0. This tubing is different from our pre-slotted 75mm Motor tubing intended for a four-fin configuration, featuring four slots that are 1/8" wide and 5/8" long.

3 Slot 98mm Airframe Tube 34": White standard Air frame Tubing. The tube has a diameter of 3.9 inches inside and 4.0 inches outside, with a wall thickness of 0.05 inches. It is available in lengths of 34 inches and is suitable for PNC 3.90 components. It should be noted that this product differs from our 98mm Motor Tubes, featuring slots that are 1/8 inch wide and 4 5/8 inches long.

4 Slot 1/4" x 8" 98mm Airframe Tube 34": This is a standard white air frame tubing measuring 3.9" in inner diameter and 4.0" in outer diameter, with a wall thickness of 0.05". It is sold in lengths of 34 inches and is designed to fit PNC 3.90 components. Please note that this airframe tube with 1/4" wide slots and an 8" length is different from our 98mm motor tubes.

6 Slot 98mm Airframe Tube 34": White standard Airframe Tubing. The tube has an inner diameter of 3.9 inches and an outer diameter of 4.0 inches, with a wall thickness measuring 0.05 inches. It is available in lengths of 34 inches and is compatible with PNC 3.90 components. Distinct from our 98mm Motor Tubes, this product features slots that are 1/8 inch wide and 4 5/8 inches long.

3 Slot 5.5" Airframe Tube 34": Identical airframe employed in the construction of the 5.5" Wolverine rocket kit, featuring three slots that are 1/4" wide and 4 5/8" long.
