Loc Centering Rings for 5.38" Airframe

Centering Rings designed to be inserted into our Airframe tubes and placed over our Motor Mount Tubes. Often known as airframes with a diameter of approximately 5.5 inches. The inner diameter of the airframe is around 5.38 inches, while the outer diameter is about 5.54 inches. We offer a range of sizes and bundles to suit your requirements for custom building projects!

CR-5.38-38mm: Rings used for aligning BT-5.38 to 38mm mounts, sold in pairs with a thickness of 1/4 inch. Each set includes an SCM3 1/4 inch eye bolt and a Z clip for securing the motor.

CR-5.38-54mm: Centering rings designed for mounting BT-5.38 to 54mm. Comes in a pack of three, each ring is 1/4 inch thick and includes an SCM3 1/4 inch eye bolt.

CR-5.38-75mm: Centering rings designed for motor mounts ranging from BT-5.38 to 75mm. This pack includes three rings that are 1/4" thick, along with SCM4 U bolts and Z Clip motor retention.

CR-5.38-98mm: Centering rings designed for motor mounts ranging from BT-5.38 to 98mm. This set of three rings is 1/4" thick and comes with an SCM3 1/4" eye bolt included.

CR-5.38-4x29mm Cluster: Centering rings designed for attaching a BT-5.38 to a 4x29mm cluster motor mount. This pack includes three rings that are 1/4" thick, along with an SCM3 1/4" eye bolt.

CR-5.38-1x38mm4x29mm Cluster: Centering rings designed for BT-5.38 to 1x38mm 4x29mm cluster motor mounts, offered in a set of three with a thickness of 1/4". The set also comes with an SCM3 1/4" eye bolt.

CR-5.38-4x38mm Cluster: Centering rings designed for BT-5.38 to 4x38mm cluster motor mount, offered in a set of three that are each 1/4" thick and come with an SCM3 1/4" eye bolt included.

CR-5.38-1x54mm4x29mm Cluster: Centering rings designed for BT-5.38 to 1x54mm 4x29mm cluster motor mounts, available in a pack of three with a thickness of 1/4" and featuring an SCM3 1/4" eye bolt.

CR-5.38-1x54mm6x29mm Cluster: Centering rings for BT-5.38 to 1x54mm 6x29mm cluster motor mount are available in a set of three, each ring being 1/4" thick and coming with an SCM3 1/4" eye bolt included.

CR-5.38-5x38mm Cluster: Centering rings designed for BT-5.38 to 5x38mm cluster motor mount, available in a pack of three with a thickness of 1/4", and comes with an SCM3 1/4" eye bolt included.

CR-5.38-3x38mm2x29mm Cluster: includes entering rings for BT-5.38 to 3x38mm 2x29mm cluster motor mount, comprising a set of three pieces that are 1/4" thick and come with an SCM3 1/4" eye bolt.

CR-5.38-7x38mm Cluster: Centering rings designed for a motor mount that accommodates BT-5.38 to 7x38mm cluster motors, available in a pack of three with a thickness of 1/4 inch.

LNR-5.38-54mm4S25: The significance of these rings lies in their function as centering rings designed for BT-5.38 to 54mm motor mounts. These slotted rings are suitable for accommodating 4 fins made of .25" plywood. Sold in a pack of three, each ring is 1/4" thick and comes with an SCM3 1/4" eye bolt and Z clip motor retention system. They are identical to the rings used in the larger 5.5" Goblin version.

LNR-5.38-54mm3S25: LOC N Rings - These rings are designed to center BT-5.38 to 54mm motor mounts and can accommodate 3 fin .25" plywood. Sold in a pack of three, each ring is 1/4" thick and comes with an SCM3 1/4" eye bolt and Z clip motor retention system. These rings are also utilized in the 5.5" model of the Wolverine rocket.

LNR-5.38-75mm3S375: The significance of this product lies in its role as centering rings designed for BT-5.38 to 75mm motor mounts, featuring slotted rings that can accommodate 3 fin .375" plywood. Sold in a set of three, these rings are 1/4" thick and come with SCM4 U bolts and Z clip motor retention hardware. These identical rings are also utilized in the 5.5" iteration of the Ultimate Buzz model.

LNR-5.38-75mm4S375: The specified item is LOC N Rings, which are centering rings designed for BT-5.38 to 75mm motor mounts. These rings have slots to accommodate 4 fins made of .375" plywood. Sold in a set of three, each ring is 1/4" thick and comes with SCM4 U bolts and Z clip motor retention hardware included. These rings are also utilized in the construction of the 5.5" model of the Nike Zeus rocket.

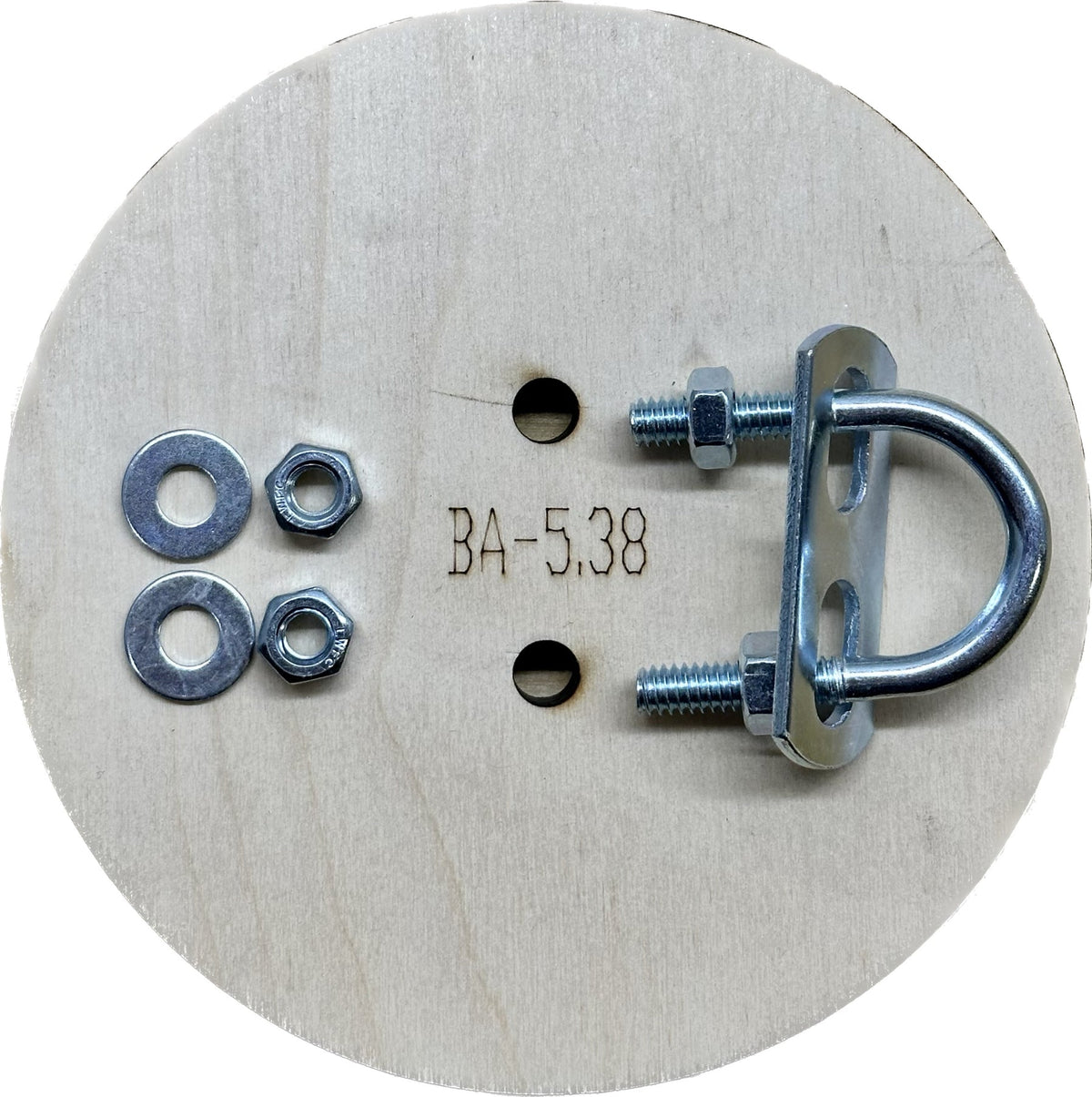

BA-5.38: The bulkhead is designed to be placed within the tube coupler TC-5.38, which is made for a 5.38" airframe. It comes with a 1/4" wooden bulk plate and a 1/4"x20 U bolt.
